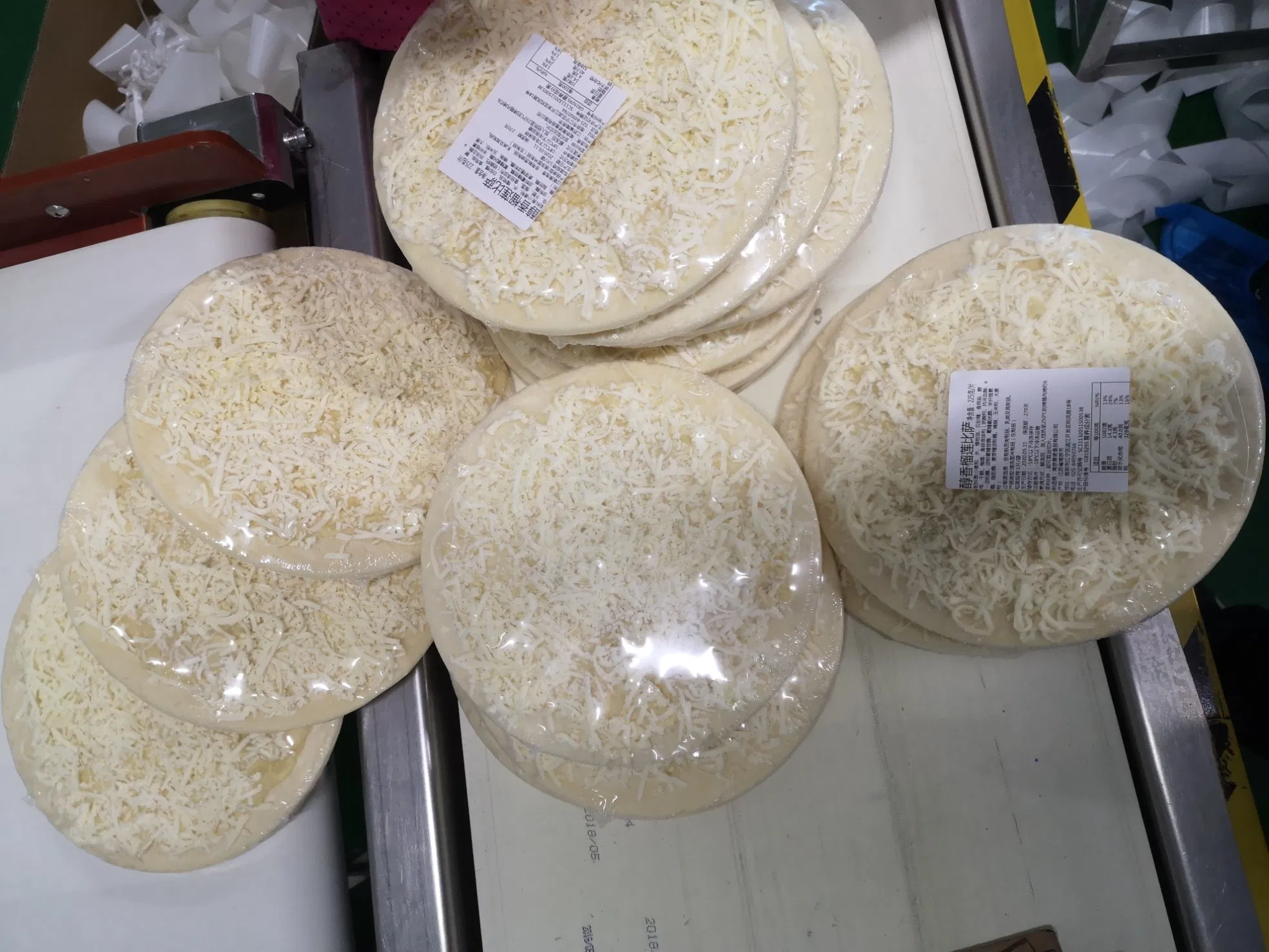

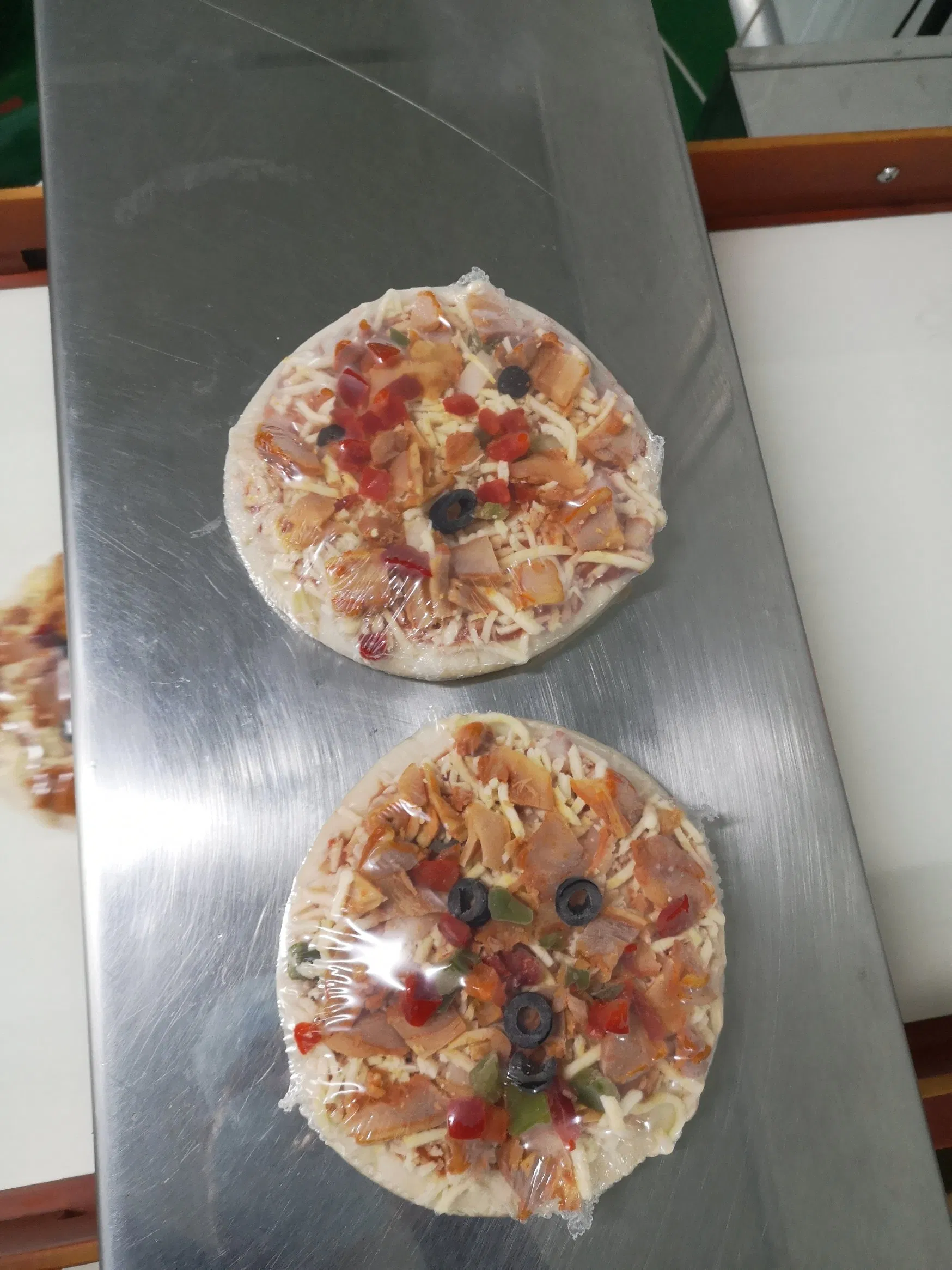

High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
1 / 5
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza
High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza

High Safety Level Ready Meals Frozen Pizza Shrink Wrapping Packing Machine for Pizza

Customization: Available
After-sales Service: Online
Warranty: 1 Year
Send Inquiry

Product Description

ⓘ

Basic Information

Model NO.
GS350+BS5030LW
Application
Food, Commodity, Machinery, Medical
Automatic Grade
Automatic
Driven Type
Pneumatic
Packing Manner
Four Side Seal Type
Material
POF Shrink Film
📦

Product Description

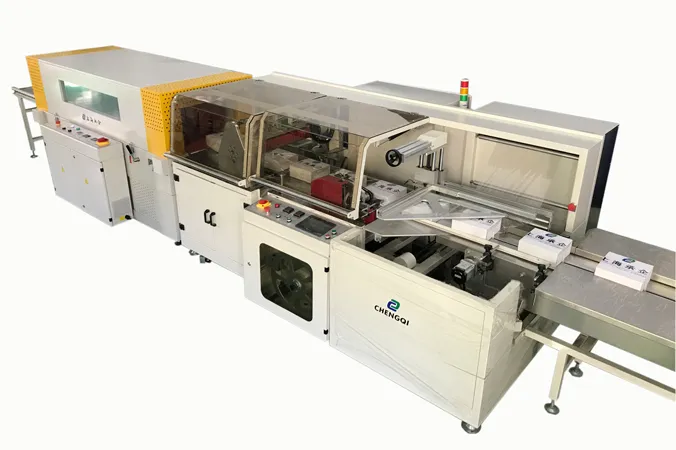

Shrink Wrapping Machine
⚡

Performance Features

  • 🔸 Patented rotary cross seal motion for smooth high speed performance.
  • 🔸 Four Servo motors for high speed accuracy and repeatability.
  • 🔸 Automatic film feeding, punching, coating, sealing, cutting, and waste rolling in one cycle.
  • 🔸 Feeding product sensor detection to prevent empty bag runs.
  • 🔸 Independent control of transverse and side sealing for perfect center-line alignment.
  • 🔸 Panasonic PLC and 7-inch man-machine interface for simple operation.
  • 🔸 Digital PID temperature controller for accurate sealing blade heat management.

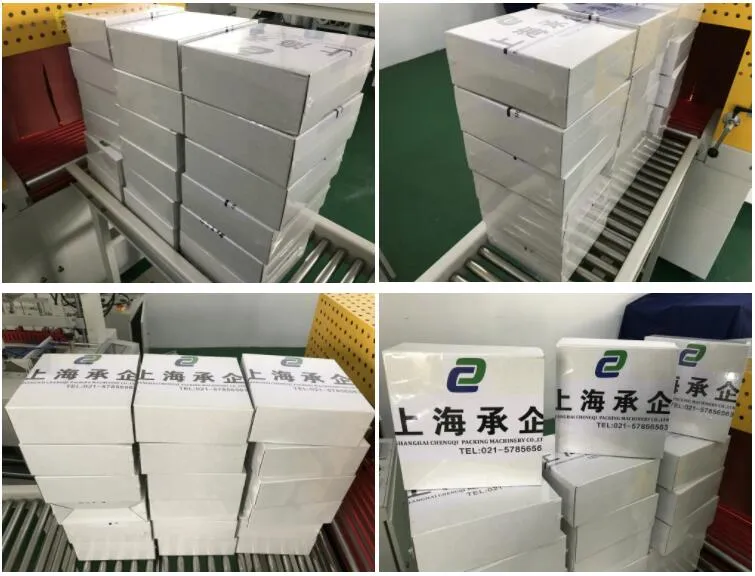

Machine Features
📊

Product Parameters

GS350
Power supply380V 3ph 50/60Hz
Packing range(L)100-380mm; (W)50-350mm; (H)10-150mm
Packing speed60-100pcs/min
Dimension(L)2700 × (W)1550 × (H)1320mm
BS5030LW
Tunnel sizeL2500 × W500 × H300mm
Conveyor speed1-20m/min
Power18KW
Machine sizeL2800 × W1020 × H1260mm
🎯

Application Range

Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries requiring large quantities of shrink wrap.

Application Range
🏭

Our Facilities & Shipping

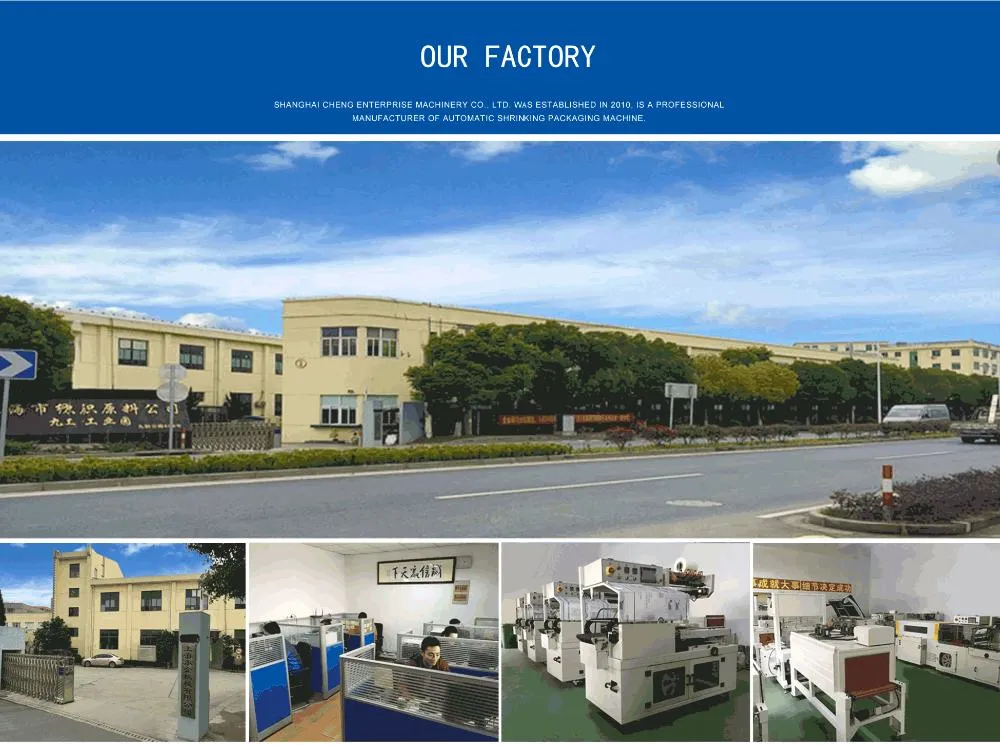

Factory View 1
Factory View 2
Packaging

Packaging: Standard Export Wooden Box
Our Service: Custom machine configurations available; One year warranty with lifelong spare parts support.

❓

Frequently Asked Questions

How do we test your machine?
When the machine is completely manufactured, we will send a video for your inspection. You can also visit our factory to test and learn how to operate it.
What information should I provide for a quote?
Please tell us what product you plan to pack and provide the product dimensions (L*W*H) and weight for an accurate quote.
Is the machine suitable for different product sizes?
Yes, the manual adjustment film-guide system and feeding conveyor platform make the machine suitable for various widths and heights.
What type of control system does it use?
The machine adopts a Panasonic PLC programmable controller and a 7-inch user-friendly man-machine interface.
What is the warranty period?
We provide a one-year warranty. We replace non-man-made damaged spare parts for free within this period (excluding wearing parts).
Can the machine be connected to a production line?
Yes, the GS350 is designed for mass production and can be easily connected with existing production lines.
